切邊機 / Trimming machine

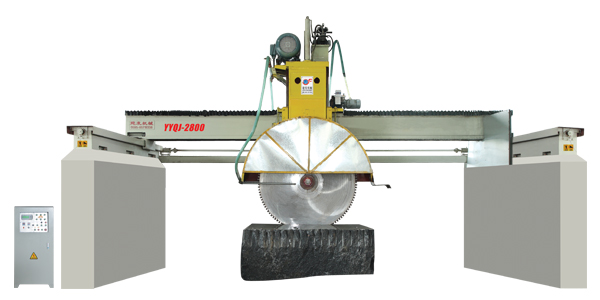

橋式液壓大切機YYQJ-2800

橋式液壓大切機YYQJ-2800

用途:適用于切超大規格的荒料,又可用于工藝及門窗、條石多方位切割。 特點: 該機是在單臂與龍門大切的基礎上開發研制的新機種。主機升降由液壓控制,自動化程度高,穩定性好。石料可直接與地面接觸,平穩、不易晃動。同時可排放多塊不同尺寸的石料進行切割,并免去了臺車部份以及其它的損耗費用。 Purpose: It is applicable for cutting of stone blocks with large size as well as multidirectional cutting of art stones, doors & windows and stone stripes. Features: This is a novel machine developed on the basis of single arm and gantry cutting. Lifting of main engine is hydraulically controlled, with high automation degree and good stability. Stones can touch with ground directly, stable and not easy to shake. A few stones with different sizes can be put together at the same time to cut to expenses arising from the truck and others are spared.

主要技術參數/Technical Data
名稱

appellation

YYQJ-2800

YYQJ-3200

加工荒料尺寸

size of processing blocks

3500x2800x1200mm

3500x2800x1300mm

設備外形尺寸

dimension of external form

8000x3800x6500mm

8500x3800x6800mm

鋸片最大直徑

maximum blade diameter

2800mm

3000mm

主電機功率

main motor power

37kw

45kw

主機升降行程

Host lift travel

1350mm

1450mm

總重量

weight

≈10000kg

≈13500kg

注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
