切邊機 / Trimming machine

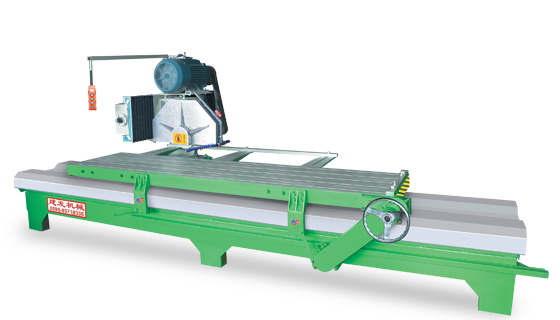

HBQB-3000X單臂切邊機

HBQB-3000X單臂切邊機

用途:用于石板材切邊倒角,花線、鋸條紋石、臺階石等。 特點:該機結構緊湊,剛性好,便于移動,密封防水式,油浸式,經久耐用,切割精度高,杜絕了“爆邊”等質量問題,主軸可任意旋轉,使用方便。 Purpose: for edge cutting and chamfering of stone slabs, making wave lines, sawing of strip stones and step stones, etc. Features: this machine has compact structure, with good rigidity and is easy to move. Both airproof & waterproof type and oil immersed type are durable, with high cutting accuracy. It can avoid quality problems like “raw edges”. The principal axis can be rotated at random and easy to operate.

主要技術參數/Technical Data
名稱

appellation

HBQB-3000X

HBQB-3000

最大加工尺寸

max.processing size

3000x1200x200mm

3000x1400x240mm

設備外形尺寸

dimension of external form

5000x1850x1850mm

5000x2400x2100mm

鋸片最大直徑

maximum blade diameter

650mm

700mm

升降電機

lifting motor

0.55kw

0.75kw

橫臂電機

gross beam motor

0.55kw

0.55kw

主軸電機

axes motor

15kw

18.5kw

總重量

weight

≈2800kg

≈3150kg

注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
