切邊機 / Trimming machine

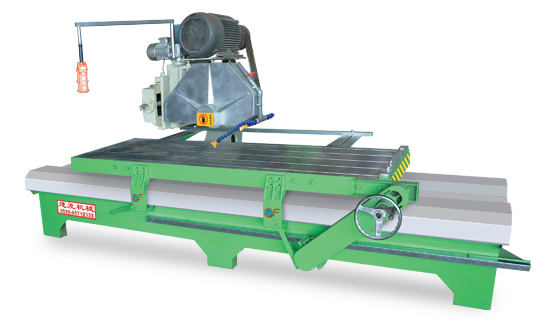

WBQB-2400彎臂切邊機

WBQB-2400彎臂切邊機

用途:用于石材廠及石材經銷商對石材半成品進行切邊、倒角加工。 特點:本機為整體設計,具有結構緊湊,安裝方便,操作簡單,切削阻力小,生產效率高,機頭可任意旋轉,既可做石板材切邊也可作石材倒角。 Purpose: It is used by stone factories and distributors for edge cutting and chamfering of the semi-finished stones. Features: This machine has an integrated design and compact structure, with low cutting resistance and high production efficiency. It is convenient to install and easy to operate. The head can be rotated at random, either for edge cutting or chamfering of stone slabs.

主要技術參數/Technical Data
名稱

appellation

WBQB-2400

最大加工尺寸

max.processing size

2400x1200x200mm

設備外形尺寸

dimension of external form

3800x2200x1800mm

最大鋸片直徑

maximum blade diameter

650mm

升降電機

lifting motor

0.55kw

主軸電機

axes motor

11kw

總重量

weight

≈2300kg

注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
