首頁產品中心切邊機ZQL-1200紅外線橋式中切機
切邊機 / Trimming machine

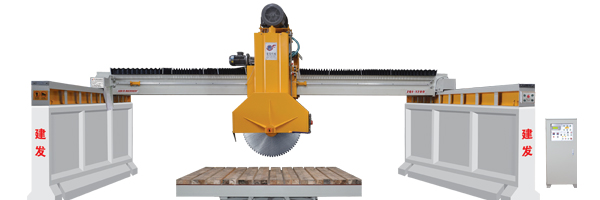

ZQL-1200紅外線橋式中切機

ZQL-1200紅外線橋式中切機

用途:用于加工條石、碑石、工藝石等產品。 特點:該機采用大跨度橋式結構,配有360°旋轉工作臺,大梁移動實現橫向分片。具有切割深度大,旋轉靈活,定位準確度大,工作平穩等特點。主要采用進口變頻器可實現切割速度的無級調速。 Purpose: It is applicable for cutting slabs with high value and large size. Features: Controlled by microcomputers, the machine is generally positioned by fully automatic girder displacement, with easy operation and high cutting accuracy, and can make use of slabs to the utmost extent. Main elements of the machine are imported high-quality components and parts, which ensure the stable mechanical property, strong applicability and high reliability.

主要技術參數/Technical Data
名稱

appellation

ZQJ-1200

ZQJ-1400

工作臺尺寸

worktable dimensions

3200x2000mm

3200x2000mm

設備外形尺寸

dimension of external form

6400x4950x4300mm

6800x4950x4300mm

鋸片直徑

blade diameter

600-1200mm

800-1400mm

最大切割尺寸

max cuting size

3200x3200x480mm

3200x3200x580mm

鋸片升降行程

blade vertical stroke

680mm

680mm

工作臺旋轉角度

range of trolley

90n°

90n°

主電機功率

main motor power

18.5kw

22kw

耗水量

water consumption

4m3/h

4m3/h

總重量

weight

≈7300kg

≈7800kg

注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸。

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
