首頁產品中心切石機QSQJ-2200橋式組合切石機
切石機 / stonecutter

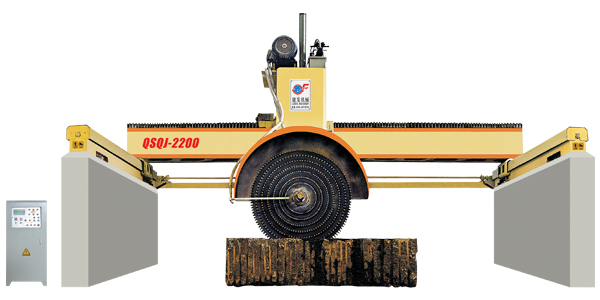

QSQJ-2200橋式組合切石機

QSQJ-2200橋式組合切石機

特點:該龍門式組合鋸既可掛1-8片進行規格板切割,又可用于工藝及門窗、條石多方位切割,具有操作靈活、適用性強等特點,可省去臺車的一切費用,效率高,對高價值的大型荒料加工成型板材尤為適宜。該機以獨自研發的液壓系統加上先進成熟的電腦自動化及數字操作系統為本公司贏得更多的贊譽。 Features: The combination of gantry saws can be linked to 1-8 pieces cut to size, but also for the process and windows, multi-directional cutting of stone, with operational flexibility, applicability, etc., can save all the costs of car efficiency high, large blocks of high-value processing is particularly suitable for forming sheet metal. The aircraft hydraulic system with its own R & D with advanced automation and sophisticated digital computer operating systems based company to win more praise.

主要技術參數/Technical Data
名稱

appellation

QSQJ-2200

加工荒料尺寸

size of processing blocks

3300x2800x1100mm

設備外形尺寸

dimension of external form

7500x3800x6300mm


鋸片最大直徑

maximum blade diameter

2500mm

主電機功率

main motor power

37kw

主機升降行程

Host lift travel

1200mm

總重量

weight

≈9000kg

注:加工長寬尺寸和設備外型尺寸,電機功率,可根據客戶需要制作對應尺寸,也可另配旋轉工作臺。
Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands,Revolving table can be provided additionally and the depletion
