Medium bridge cutting machineZQJ-1200

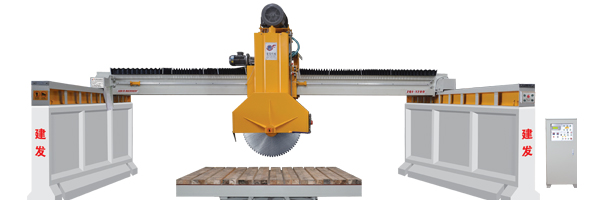

Medium bridge cutting machineZQJ-1200

Purpose: It is applicable for cutting slabs with high value and large size. Features: Controlled by microcomputers, the machine is generally positioned by fully automatic girder displacement, with easy operation and high cutting accuracy, and can make use of slabs to the utmost extent. Main elements of the machine are imported high-quality components and parts, which ensure the stable mechanical property, strong applicability and high reliability.

Technical Data

appellation

ZQJ-1200

ZQJ-1400

worktable dimensions

3200x2000mm

3200x2000mm

dimension of external form

6400x4950x4300mm

6800x4950x4300mm

blade diameter

600-1200mm

800-1400mm

max cuting size

3200x3200x480mm

3200x3200x580mm

blade vertical stroke

680mm

680mm

range of trolley

90n°

90n°

main motor power

18.5kw

22kw

water consumption

4m3/h

4m3/h

weight

≈7300kg

≈7800kg

Remark: the processing dimensions (length and width), overall dimension of equipment and motor power are subject to customers’demands.
